Mohamed El Mistiri

This paper presents the formulation, design procedure, and application of a hybrid model predictive control (HMPC) scheme for hybrid systems that is embedded in a mixed logical dynamical (MLD) framework. The proposed scheme adopts a three degrees-of-freedom (3DoF) tuning method to accomplish precise setpoint tracking and ensure robustness in the face of disturbances (both measured and unmeasured) and uncertainty. Furthermore, the HMPC algorithm employs setpoint and disturbance anticipation to proactively enhance controller performance and potentially reduce control effort. Slack variables in the objective function prevent the mixed-integer quadratic problem from becoming infeasible. The effectiveness of the proposed algorithm is demonstrated through its application in three distinct case studies, which include control of production–inventory systems, time-varying behavioral interventions for physical activity, and management of epidemics/pandemic prevention. These case studies indicate that the HMPC algorithm can effectively manage hybrid dynamics, setpoint tracking and disturbance rejection in diverse and demanding circumstances, while tuned to perform well in the presence of nonlinearity and uncertainty.

Plants with integrators possess control-relevant modeling requirements that are typically ignored in the literature. Desired closed-loop speeds of response for such systems can differ significantly from their open-loop dynamics, causing conventional system identification guidelines to fail or be inaccurate. One such issue relates to experimental design. This paper presents guidelines for the design of excitation signals for system identification of plants with integrators, with application to the modeling and control of a microalgae raceway reactor. The concept is to excite the system through optimized test signals with control-relevant shaping of their power spectra. This facilitates a shift in emphasis of the identification objective from estimating a model with good open-loop performance to having a model possessing desired closed-loop characteristics. Such a consideration is particularly important when generating informative databases for estimating predictive models for closed-loop control. An illustration for this experimental design procedure is accomplished in this paper through the estimation of ARX-based models and, subsequently, model predictive control of the pH dynamics of an experimental raceway photobioreactor facility hosting sustainable microalgae production.

This paper presents a Three-Degree-of-Freedom Model Predictive Control (3DoF MPC) framework based on Multi-Input-Multi-Output (MIMO) “Model-on-Demand” (MoD) estimation. MoD is a data-centric weighted regression algorithm that generates local models over adaptively varying neighborhoods of changing operating conditions. The 3DoF formulation enables individualized tuning of parameters relating to setpoint tracking and measured and unmeasured disturbance rejection. Online estimation of system dynamics using MIMO MoD and augmentation with the 3DoF MPC structure allows the generation of control laws based on efficient locally linear approximations of system nonlinearities. This paper evaluates the framework through a case study involving a nonlinear MIMO Continuous Stirred Tank Reactor (CSTR) model. The MIMO CSTR system is highly interactive, making data-driven estimation and control notably more challenging than its SISO counterpart. The generation of an informative database using modified “zippered” multisines is presented. The paper concludes with a case study demonstrating the effectiveness of 3DoF MoD MPC in achieving constrained MIMO control of reactor concentration and temperature in the presence of disturbances through a flexible and intuitive approach.

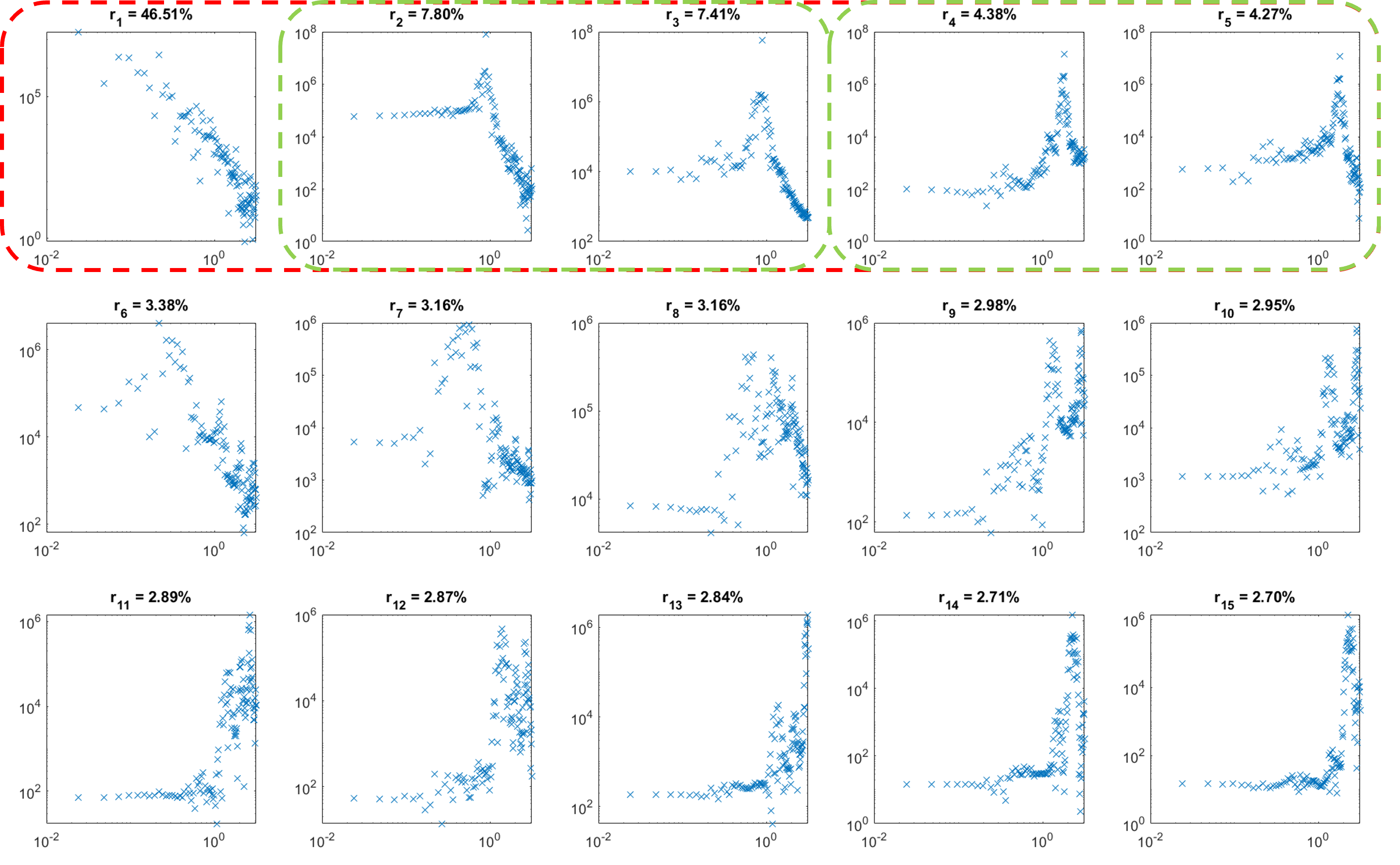

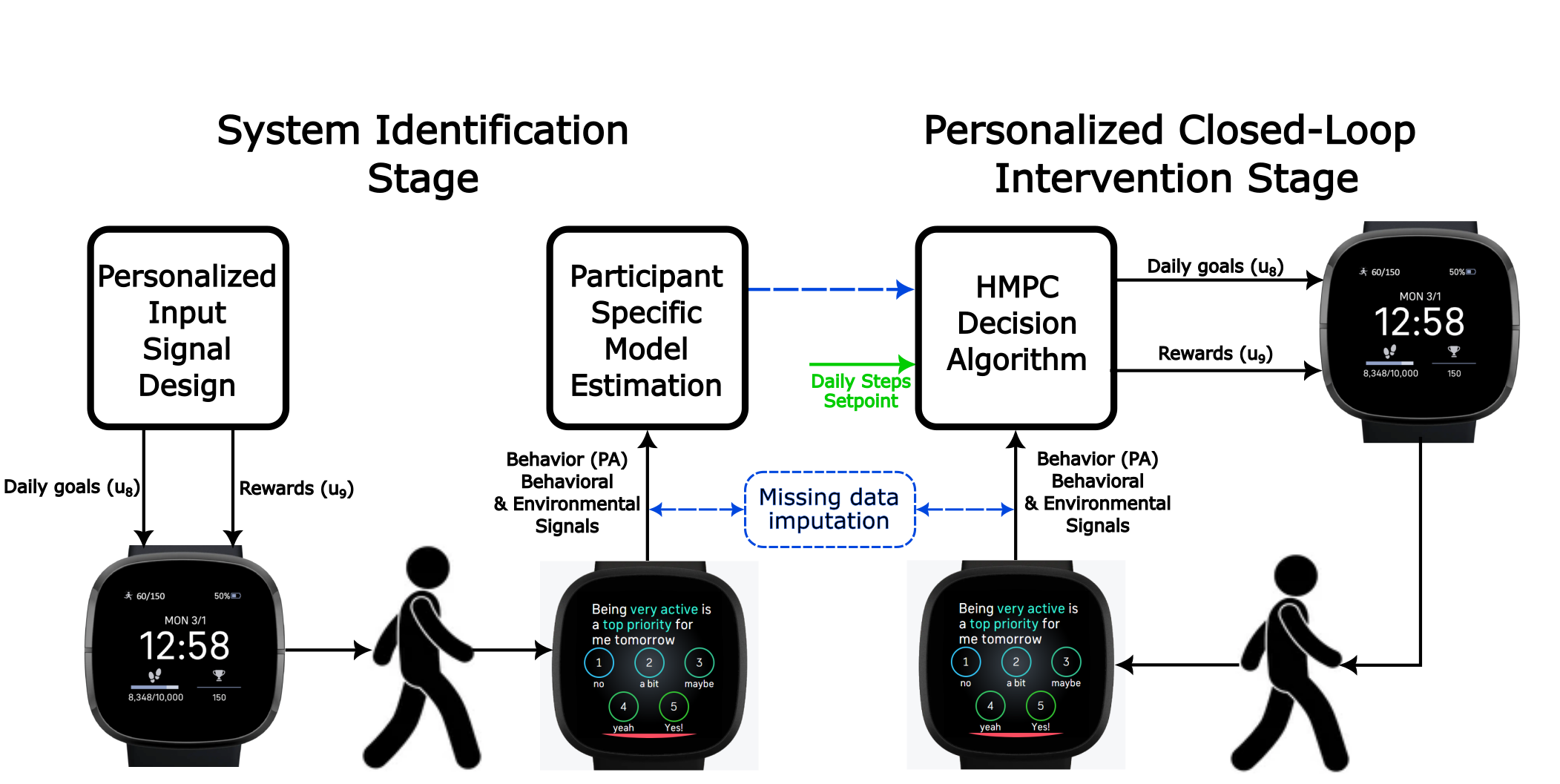

Insufficient physical activity (PA) is highly prevalent in society, despite its negative impact on personal health. Effective interventions are clearly needed. However, improvements to behavioral interventions face many challenges, from noisy and missing measurements to inadequate understanding of the dynamics of behavior change in context. In this paper, we present a comprehensive, data-driven, system identification approach aimed at overcoming challenges to better understand the dynamics of PA behavior change, which in turn can improve the efficacy of these interventions. The proposed approach consists of an innovative input signal design (aimed at providing informative data sets to study the concept of “just-in-time” dynamics), Singular Spectrum Analysis (SSA; for noise reduction and exploring the separability of the measured output signal), and Model-on-Demand (MoD) estimation, a hybrid data-driven modeling approach, which allows identifying dynamics under changing operating conditions. The proposed approach is evaluated on data for a representative participant from the JustWalk JITAI study. The results demonstrate significant potential of the methodology in enhancing the understanding of the dynamics of behavior change in context.

The COVID-19 pandemic has brought about unprecedented opportunities to introduce control systems topics in the undergraduate engineering curriculum. This paper describes two computer modeling assignments based on MATLAB with Simulink developed for CHE 461: Process Dynamics and Control taught at Arizona State University during the fall 2020 semester. A myriad of important concepts, among these dynamic modeling using conservation and accounting principles, linearization, state-space system and transfer function model representations, PID feedback control and Internal Model Control design can be applied to the problem and explained to students in the context of a significant world event representing a unique “process” system, notably the COVID-19 pandemic.
